BNH 2000 - Underbody Machine

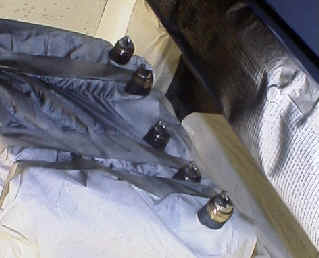

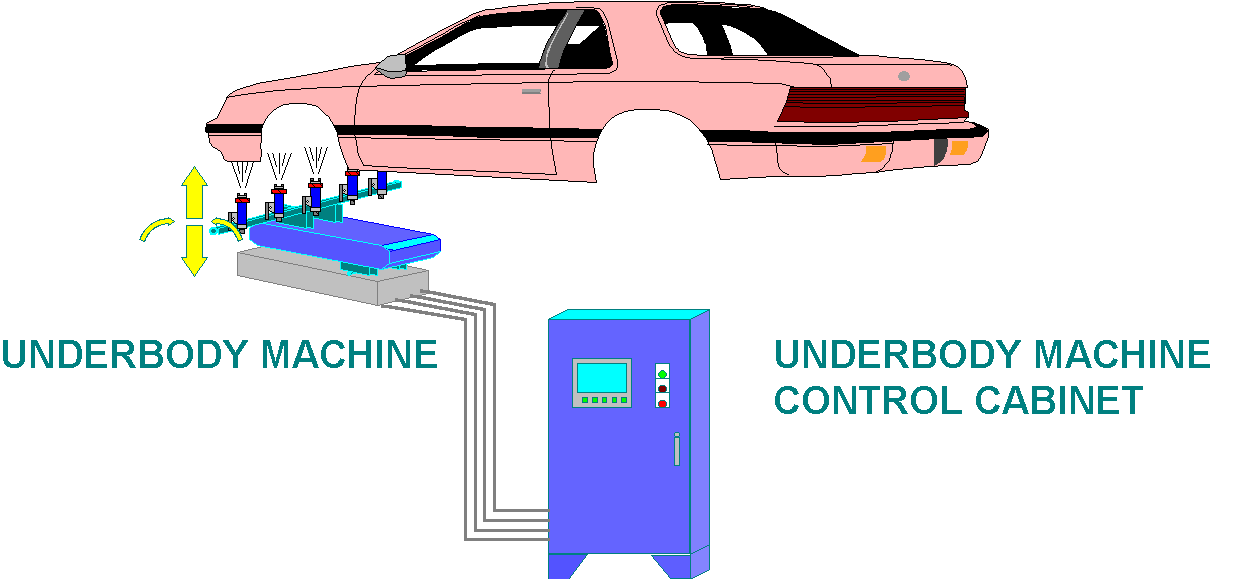

Durable two (2) axis underbody machine. The BNH 2000 Underbody Machine is designed to be mounted stationary beneath a moving conveyor. This machine is capable of holding up to five (5) applicators. The first axis incorporates a three (3) position, programmable lift for changing the gun to target distance. The second axis of motion rotates the guns +30, 0, -30 degrees to allow the guns to spray around underbody obstacles.





Specifications

UNDERBODY MACHINE SPECIFICATIONS

HEIGHT WIDTH LENGTH WEIGHT
24" 40" 32" 380 LBS

STROKE

Standard unit has three (3) automatic lift positions (up +4", center 0", down -4") for a total vertical stroke of 8".

Standard unit has three (3) automatic gun bar rotation positions (CW "+30" degrees, center "0" degrees, CCW "-30" degrees) for a total of "60" degrees of  rotation.

GUN BAR

Standard unit includes grounded gun bar with five (5) adjustable gun mounting brackets.

Standard gun bar 42" in length.

Standard gun bar total load not to exceed 60 lbs.

DESCRIPTION

SELF TEST AND FAULT OUTPUT (DRY CONTACT)   STANDARD
OPERATOR INTERFACE   STANDARD
CONVEYOR SYNCHRONIZATION   STANDARD
MANUAL OUTPUT FORCING FOR TEST   STANDARD
CONVEYOR INTERLOCK   STANDARD
FIRE INTERLOCK   STANDARD
BOOTH INTERLOCK   STANDARD

CONTROL PANEL SPECIFICATIONS
HEIGHT WIDTH DEPTH ENVIRONMENTAL POWER POWER
72" 30" 10" 32-120 degrees F 10A/120VAC
